Semi Dump Trailer

Your Professional Semi Dump Trailer Supplier

At present, the company mainly engages in the production and manufacturing of trailers for "Liangshan Xinruida", "Cheng'an Xinruida", and "Jinan Senyang", as well as the design and export of various specialized vehicles. The enterprise supplies flatbed semi-trailers, low flatbed semi-trailers, cement tank trucks, excavator transport semi-trailers, concrete transport tank trucks, multi axis low flatbed semi-trailers, rear dump trucks, side dump semi-trailers, coal transport semi-trailers, 40 foot container semi-trailers, oil tank trucks, asphalt special vehicles, bulk cement tank trucks, cement mixer trucks, skeleton semi-trailers, extended and widened trucks, and special vehicles.

Liangshan Xinruida Special Vehicle Machinery Manufacturing Co., Ltd. is a designated production unit for automobiles and trailers approved by the Ministry of Industry and Information Technology of China.

Why Choose us

Advanced Production Equipment
The company has introduced advanced, precise, and cutting-edge equipment, adopted processing techniques, and selected high-quality raw materials and components for production and manufacturing.

A Global Supply Chain
The products are popular in more than 30 provinces, more than 300 cities, counties, and districts across the country, and are highly praised by customers. Special vehicles are popular nationwide and exported overseas to Central Asia, Russia, Panama, Brazil, Vietnam, the Philippines, Pakistan, Kazakhstan, Kyrgyzstan, Novosibirsk, Chipeh, Khaba, Vladivostok, Congo, Sudan, as well as South America, Southeast Asia, and Africa, earning the satisfaction and trust of our customers.

Quality Assurance
Its products have been listed in the "Announcement" management and have passed the mandatory "3C" certification and 2000 quality management system certification of the China Quality Certification Center.

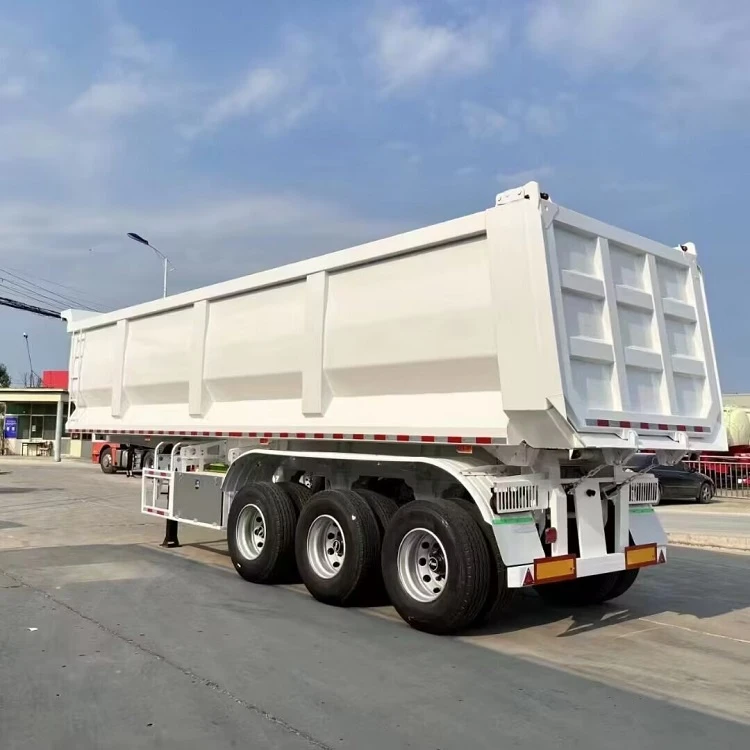

Semi Dump Trailer Specifications

Dimensions	40′ Length x 102″ width x 76″ Side Height
Lighting	Standard LED Lighting
King Pin / Coupler Height	18″ / 49″
Color	White, Black or Grey
Body	1/4″ AR 450 Wear Plate
Nose & Gate	3/16″ AR 450 Wear Plate
Tailgate	Barn Door with Cam-Over-Center Air-Operated Bottom Latch and Ratchet-Operated Side Latch
Axles	25,000lb. 5″ Tubular , 5/8″ Wall
Suspension	50,000lb. Single Point. Keeps all 8 tires on the ground.
Tires/Wheels	11R x 24.5 16 Ply Radials / 10 Hole Hub Piloted Steel
Paint	High-Gloss, Reverse Impact, UV-Protectant, Rust-Inhibiting
Draft Arms	5″ x 3″ x 1/4″ Steel Tubes with 2-Speed Landing Gear
Fenders	Rear Aluminum Bolt-On
Capacity (40′ L)	64.867 Cubic Yards (76” Side Height) 86.844 Cubic Yards (100” Side Height)

Features of Semi Dump Trailer

Semi dump trailer and semi trailer parts adopts high-quality steel, advanced technology, strict production and manufacturing. The whole vehicle structure is with reasonable and reliable performance, simple operation and beautiful appearance.

The frame is girder type structure whose longitudinal beam adopts straight or gooseneck type. The web height is from 400mm to 550mm with manganese plate welded and the longitudinal beam is automatically buried welded. Besides, the frame adopts shot blasting and the beam across the longitudinal beam, welding as the whole.

The suspension adopts non-independent steel plate stamping rigid suspension, made of tandem leaf spring and suspension support; It has reasonable structure, strong rigidity and strength and is used to support load as well as cushion the blow.

Application of Semi Dump Trailer

Semi dump trailer use at construction sites

Material transportation: Semi dump trailers excel in moving large volumes of building materials such as gravel, sand and crushed stone. They're built strong to handle these heavy loads, ensuring a smooth flow of essential materials to and from the construction site.

Mining & quarry dump trailer uses

Ore and mineral transportation: One of the primary semi dump trailer uses in mining operations is the transportation of extracted ores and minerals. These trailers can handle the heavy and abrasive nature of mining materials, moving them efficiently from the extraction site to processing facilities.

Semi dump trailer use in agricultural and forestry applications

Crop and harvest transport: During harvest season, semi dump trailers move large quantities of crops from fields to storage or market. Their ability to handle heavy loads of grains, vegetables or fruits while ensuring minimal damage during transit is crucial for maintaining the quality and profitability of agricultural produce.

Industrial and manufacturing semi dump trailer applications

Raw material delivery: One of the critical uses of semi dump trailers in industrial environments is transporting raw materials to manufacturing plants. They're capable of hauling large quantities of materials like metal ores, coal or plastics, which are essential for various manufacturing processes.

Specialized applications

Disaster relief and cleanup: In the aftermath of natural disasters like earthquakes, hurricanes or floods, semi dump trailers are crucial for cleanup operations. They're used to remove debris, clear roads and transport relief materials.
Large-scale event setup and dismantling: Semi dump trailers are instrumental in setting up and dismantling large-scale events such as music festivals, trade shows or sports events.

Certificate

FAQ

Q: How many yards of dirt are in a semi dump trailer?

A: Typically dump trailers are used to haul stone and sand onto a project. Soil, concrete, clay, brick, and block are all typical materials this trailer might haul off a job. Upwards of 20 cubic yard capacity. More cost efficient for heavier loads with a weight limit of 20 tons.

Q: What metal are semi dump trailers made of?

A: Combo flatbed semi-trailers are comprised of a steel beam, aluminum floor, and aluminum side rails. They provide the weight-savings of aluminum with the strength of the steel beam.

Q: How many tons can a semi dump trailer haul?

A: A steel trailer, typically referred to as a Round Bottom, will be heavier and will have a payload of approximately 21 to 23 tons. By contrast, an aluminum end dump is much lighter and can carry anywhere from 23-28 tons, with some set-ups being able to approach 30-ton payloads.

Q: How much does a semi dump trailer weigh?

A: When empty, a dump trailer can weigh anywhere from 1,100 to just over 10,000 pounds. The average weight for dump trailers is 4,500 pounds unloaded.

Q: What is the most common size dump trailer?

A: The most common size dump trailer is 14-ft.

As one of the most professional semi dump trailer manufacturers and suppliers in China, we're featured by quality products and competitive price. Please rest assured to buy semi dump trailer for sale here from our factory. Contact us for customized service.
